[33] STEEL TILE ROOF IN CHILLIWACK B.C. |
|
|
|
 |

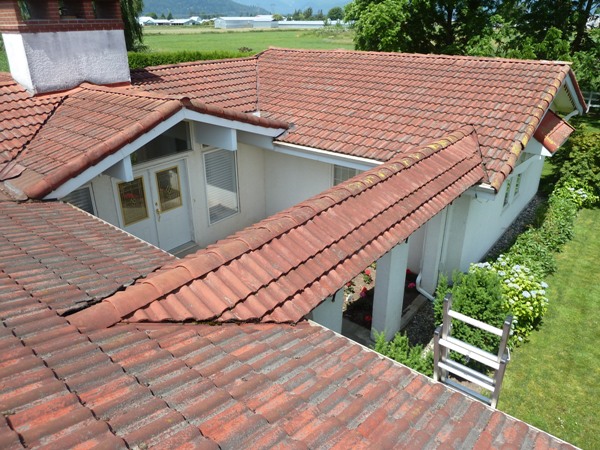

THE ORIGINAL CONCRETE TILES LASTED 30 YEARS. HOWEVER MULTIPLE LEAKS FORCED THE OWNER TO REPLACE THE ROOF.
|
|
|
 |
THE STEEL TILE PANELS ON THE ADDITION WAS A PRODUCT CALLED STILE,ORIGINATING FROM THE USA. WE LOOKED AT WESTFORM'S DECKTILE, BUT IT WAS NOT GOING TO BE A PROPER MATCH.
|
|
|
 |

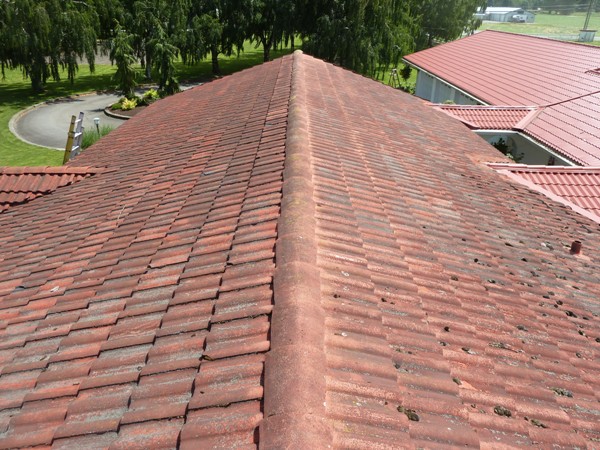

THE ROOF WAS HIGHLY VISIBLE FROM THE ROAD. THE PROJECT HAD TO BE DONE PROPERLY, TO MAINTAIN IT'S VISUAL APPEAL.
|
|
|
 |

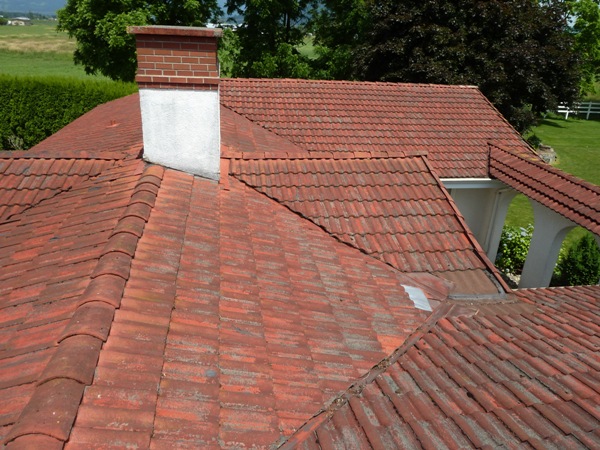

THERE WERE ALOT OF HIPS AND VALLEYS.
|
|
|
 |

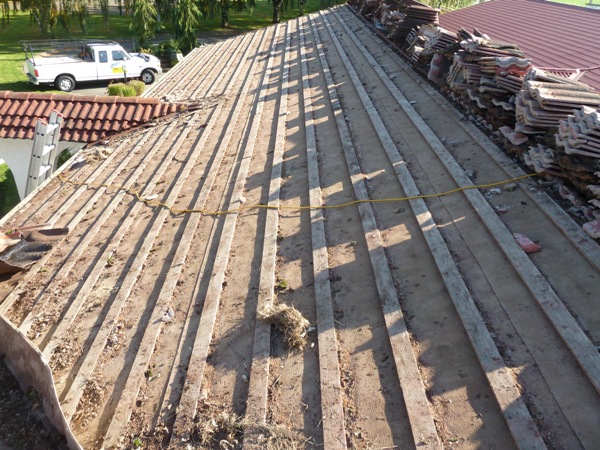

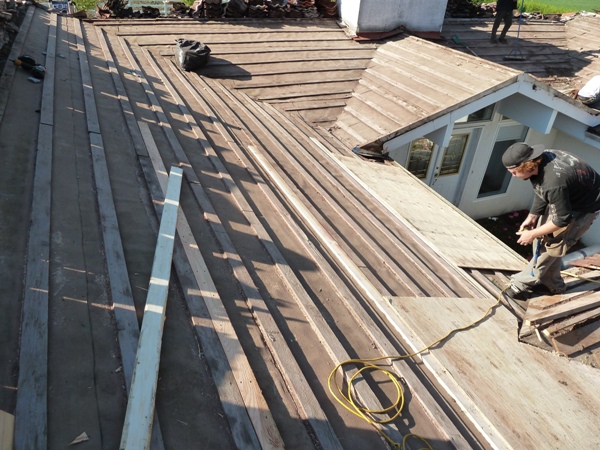

WE REMOVED THE CONCRETE TILES AND FOUND LOTS OF STRAW, DEAD BIRDS, BATS, RATS AND MICE.YEAH IT MADE US SICK TOO.
|
|
|
 |

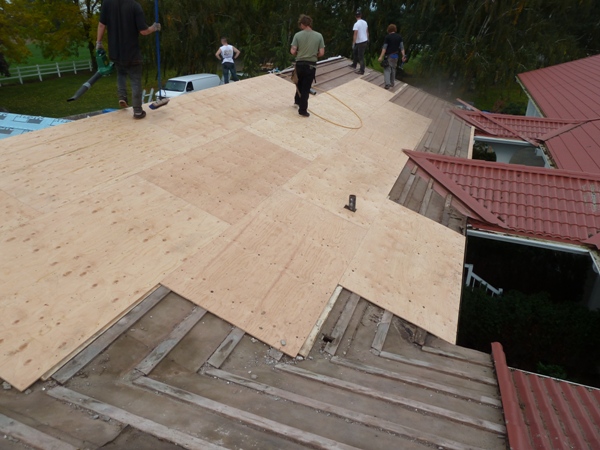

WE REPLACED SOME DETERIORATED STRAPPING WHERE REQUIRED, AND THEN APPLIED 1/2 PLYWOOD.
|
|
|
 |
WE DROPPED IN SOME MORE 1X4 STRAPPING FOR ADDITIONAL BACKING OR SUPPORT.
|
|
|
 |

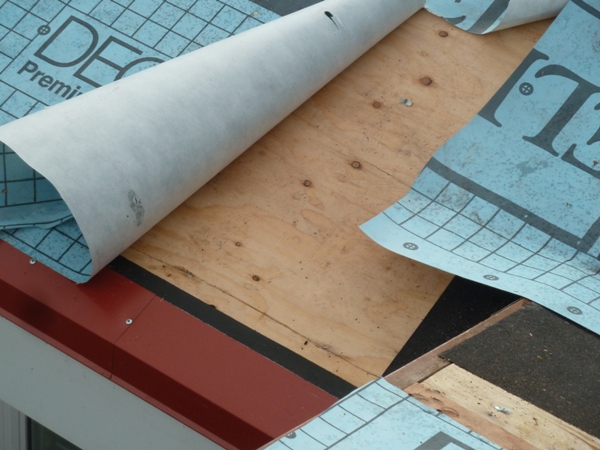

WE APPLIED FELT AT THE EAVES BEFORE THE METAL DRIP EDGE FLASHING WAS INSTALLED.
|
|
|
 |

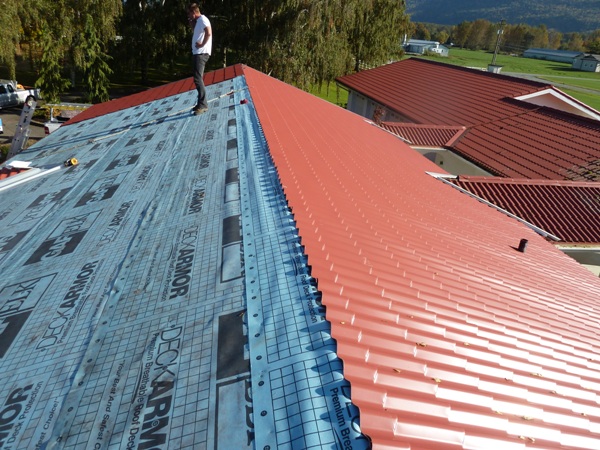

THE REST OF THE ROOF WAS COVERED IN DECKARMOUR PREMIUM UNDERLAY.
|
|
|
 |
WE UNCRATED THE PANELS AND SPREAD THEM OUT ON THE GROUND.
|
|
|
 |
WE MADE OUR STRAIGHT CUTS WITH OUR METAL SHEER.
|
|
|
 |
THE JOB IS COMING TOGETHER QUITE NICELY. THERE'S ALOT OF ANGLE CUTS HERE.
|
|
|
 |

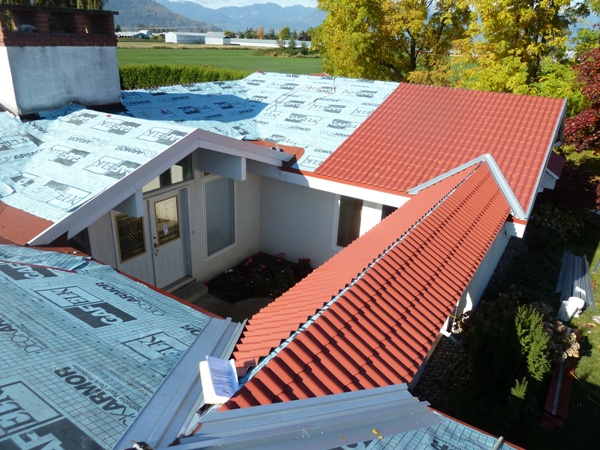

WE ARE MORE THAN HALF WAY TO COMPLETION.
|
|
|
 |

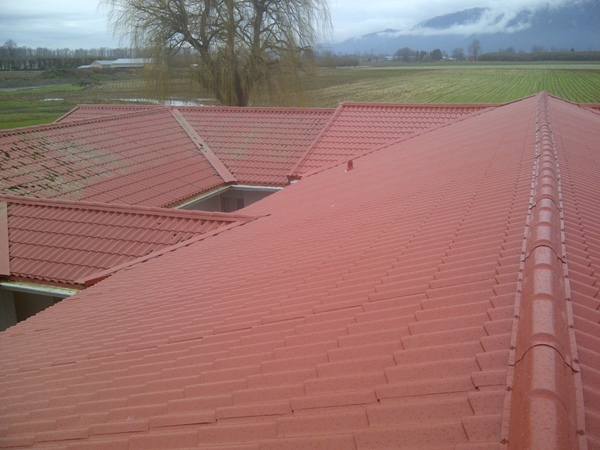

THE TWO ROOFLINES FINALLY MATCH UP. NOTICE THAT THERE IS NO NOTICEABLE FADING BETWEEN THE OLD PRODUCT AND THE NEW. THAT SHOWS THE SUPERIORITY OF A KYNAR FINISH. THE OWNER IS GOING TO WASH THE OLD ROOF
|
|
|
|
|
|
