[35] INSULATED METAL ROOF ON A MOBILE HOME |
|
THE SYSTEM WE ARE SHOWING IS AN INSULATED METAL ROOF SYSTEM; REDUCING NOISE AND HEAT LOSS/GAIN.
|
|
 |

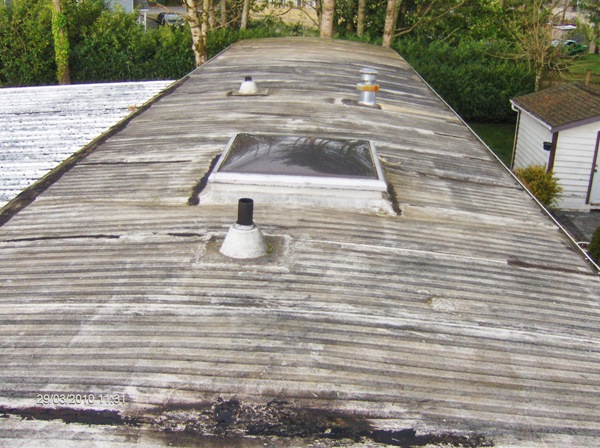

THE CORRUGATED METAL ROOFS FROM THE FACTORY ARE VERY THIN AND POORLY SUPPORTED.
|
|
|
 |

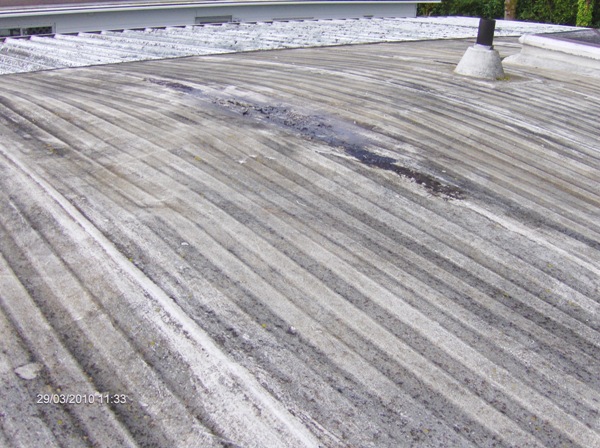

THE ROOF HAS LOTS OF DIPS AND VALLEYS. SEAMS USUALLY HAVE BEEN PATCHED AND REPAIRED.
|
|
|
 |

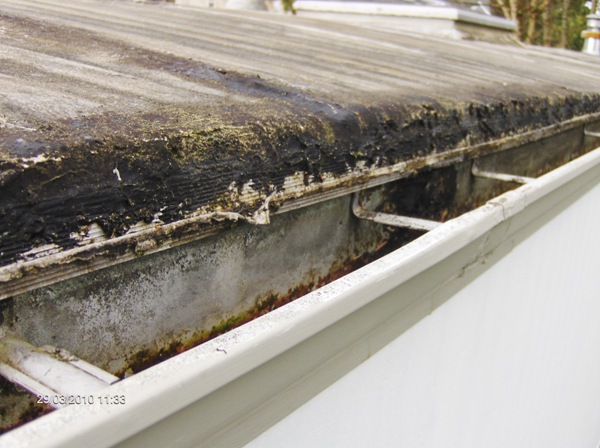

CLOSEUP OF THE FACTORY GUTTER / DRIP EDGE, WHICH WE WILL COVER UP WITH OUR OWN EAVE TRIM.
|
|
|
 |

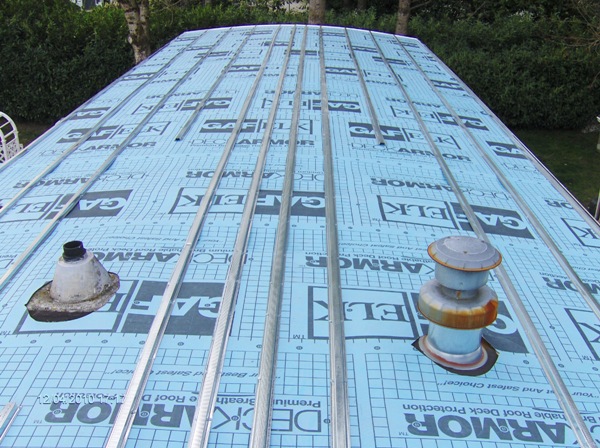

THE ROOF IS COVERED IN DECKARMOUR AND THEN METAL HAT TRACK APPROXIMATELY 16 INCHES APART.
|
|
|
 |

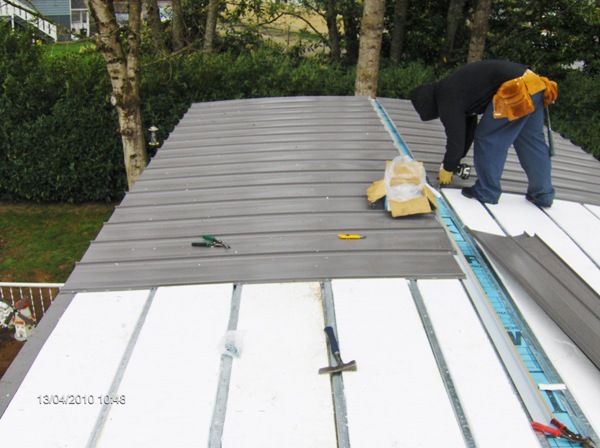

WE INSTALL ONE INCH THICK STYROFOAM INSULATION BETWEEN THE METAL FURRING STRIPS. THIS ADDS SUPPORT FOR OUR NEW ROOF PANELS.
|
|
|
 |

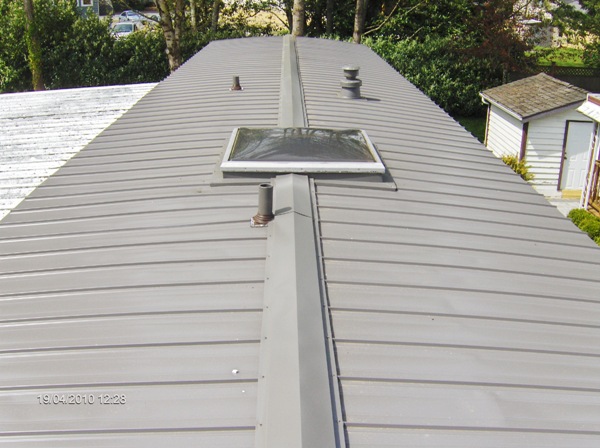

WE BREAD PAN OUR PANELS AT THE PEAK AND INSTALL VENTED FOAM CLOSURE STRIPS.
|
|
|
 |

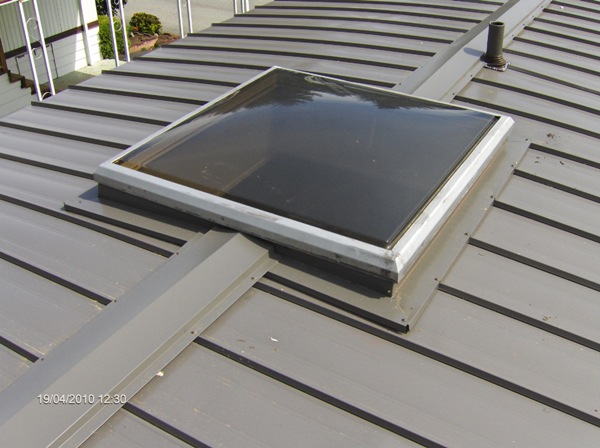

THE SKYLIGHT IS REFLASHED, AND SEALED.
|
|
|
 |
COMPLETION PICTURE FROM THE FRONT.
|
|
|
 |
COMPLETION PICTURE FROM THE REAR.
|
|
|
 |
WE INSTALLED NEW 5 INCH GUTTERS NICELY COORDINATED WITH THE ROOF TRIMS, PLUS GUTTER GUARDS FOR A LOW MAINTENANCE PACKAGE DEAL.
|
|
|
 |

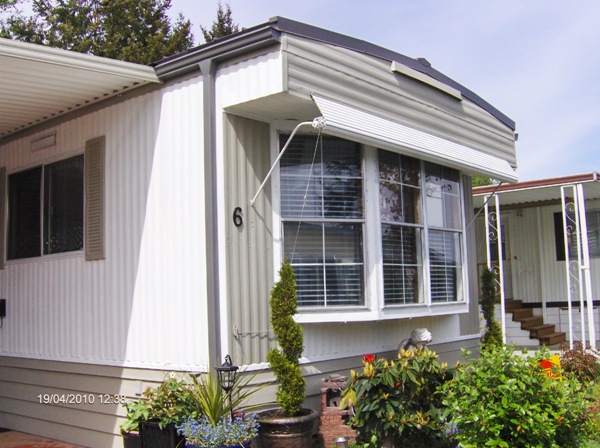

THIS IS WHAT YOU SEE FROM THE GROUND.
|
|
|
|
|
|
